IO333

Configurable and Simulink-Programmable FPGA I/O Module

The IO333 I/O module is capable of low-latency connectivity and high-frequency closed-loop sample times.

The module features a high-speed memory, eight multi-gigabit transceivers (MGT), a PCIe interface and a FPGA chip with either 325k or 410k logic cells. I/O interfaces determine the analog and digital I/O functionality available.

The IO333 comes as a configurable or Simulink-programmable I/O module.

Key Features

  • Closed-loop sample rates of up to 10 MHz
  • High-frequency acquisition and signal generation
  • Analog and digital inputs and outputs
  • High-speed communication protocols
  • Configurable workflow for Simulink Real-Time™ supported by Speedgoat custom implementation bitstreams and the Speedgoat Library
  • Simulink-programmable workflow to use HDL Coder™ and Simulink Real-Time™ supported by the Speedgoat HDL Coder Integration Package

Physical
Form factor XMC
Power requirements 3.3 V (±5 %): 7.6 W typical
12 V (±5 %): 2.6 W typical
3.3 V AUX (±5 %): 57 µW typical
Bus PCI Express x4 Link (Base Specification 2.1)
Connectors XMC connector for additional plug-in
AXM connector for direct plug-in
Environmental
Operating temperature -40°C to +55°C
Relative humidity 5 to 95%, non-condensing
Radiated field immunity (RFI) Complies with IEC61000-4-3 class A
Electromagnetic interference immunity (EMI) Complies with IEC61000-4-6 class A
Electric fast transient immunity (EFT) Complies with IEC61000-4-4 class A
Radiated emissions Complies with CISPR 16-2-3 class A
FPGA IO333-325k IO333-410k
FPGA chip Xilinx Kintex-7 Xilinx Kintex-7
Speedgoat product name IO333-325k IO333-410k
Logic cells 326080 406720
CLB flip-flops 407600 508400
DSP Slices 840 1540
Block RAM blocks 425 795
Block RAM 16020 28620
GTP Transceivers 16 16
MGT
GTP Transceivers (6.6 Gb/s Max Rate)
PCIe Endpoint 8 MGT on PCIe Edge Connector
Inter-module communication 8 MGT on XMC P16 Connector
Digital I/O XMC P164 differential digital I/O lines configurable with 2.5 V standard for machine internal synchronization or communication
I/O Interfaces

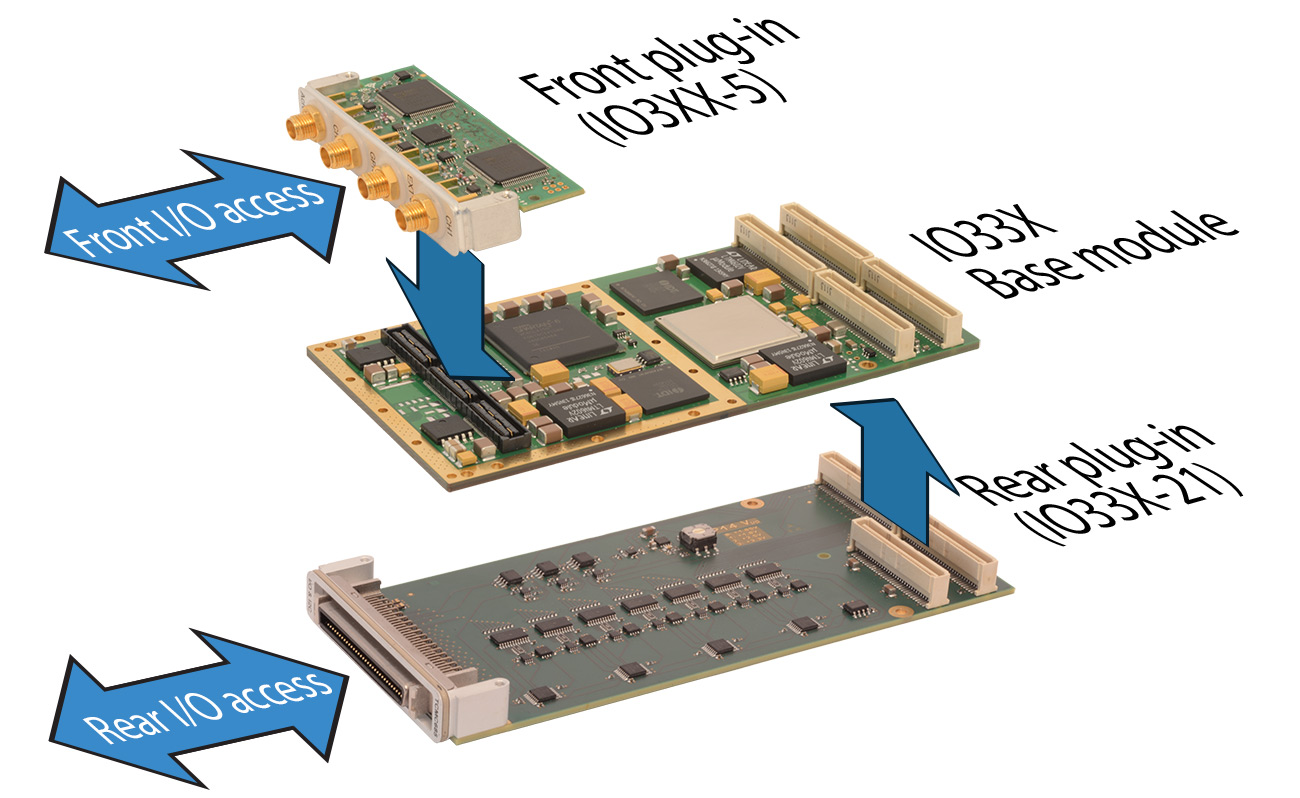

IO333 - Plug-ins
I/O Interface
IO333-1-LV 64x digital LVCMOS (2.5 V)/LVTTL (3.3 V) I/O lines
IO333-2 30x RS485 (RS-422 compliant) I/O lines
IO333-3 16x CMOS (5 V) and 22 RS-485 (RS-422 compliant) I/O lines
IO333-4 30x LVDS I/O lines
IO333-6 16x 16-bit 500 kHz ADCs, 8 x 16-bit DAs with 10 μs settling time, and 16x digital TTL I/O lines
Extension I/O Interface
IO333-21 56x 3.3 V/5 V TTL I/O lines
IO333-22 24x 3.3 V/5 V TTL I/O lines and 32x RS422/RS485 I/O lines
IO333-32 Signal-conditioning I/O module provides access to 4x MGT I/O lines with 4x SFP+ cages
Item ID Product Name Components
2A333X IO333-325K
  • 1 x IO333 I/O module with 325k logic cells
  • Driver block library for Simulink Real-Time™
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into real-time target machine
2B333X IO333-410K
  • 1 x IO333 I/O module with 410k logic cells
  • Driver block library for Simulink Real-Time™
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into real-time target machine
I/O Interface
2H333X IO333-1-LV
  • 1 x IO33X-1-LV
  • 1x 68-pin male SCSI3 to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation onto the IO333 I/O module
2B333X IO333-2
  • 1 x IO33X-2
  • 1x 68-pin male SCSI3 to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation onto the IO333 I/O module
2C333X IO333-3
  • 1 x IO33X-3
  • 1x 68-pin male SCSI3 to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation onto the IO333 I/O module
2D333X IO333-4
  • 1 x IO33X-4
  • 1x 68-pin male SCSI3 to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation onto the IO333 I/O module
2F333X IO333-6
  • 1 x IO33X-6
  • 1x 6.7 ft/2 m round cable featuring a 68-pin male VHDCI connector to a 68-pin male SCSI3 connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation onto the IO333 I/O module
Extension I/O Interface
2I333X IO333-21
  • 1 x IO33X-21
  • 1x 6 ft/1.82 m shielded and twisted round cable featuring a 68-pin male SCSI3 connector to a 68-pin male MDR connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation next to the IO333 FPGA I/O module
2J333X IO333-22
  • 1 x IO33X-22
  • 1x 6 ft/1.82 m shielded and twisted round cable featuring a 68-pin male SCSI3 connector to a 68-pin male MDR connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation next to the IO333 FPGA I/O module
2M333X IO333-32
  • 1 x IO33X-32
  • Installation next to the IO333 I/O module
HDL Coder Integration Package
3A33IP IO333-325k HCIP
  • IO333-325k HDL Coder Integration Package
  • HDL Coder integration for all the interfaces of the direct and additional plug-ins available for this module
3B33IP IO333-410k HCIP
  • IO333-410k HDL Coder Integration Package
  • HDL Coder integration for all the interfaces of the direct and additional plug-ins available for this module

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
