Reference Example: Controller HIL Testing for Brushless DC Motor
Accelerate testing of embedded motor controllers by simulating a three-phase brushless DC (BLDC) motor drive as hardware-in-the-loop.
Download models (login required)
Contact Sales
×
×
Learn how to:
Model and simulate the dynamics of a high-fidelity brushless DC (BLDC) motor drive’s digital twin, including its ripples and switching harmonics.

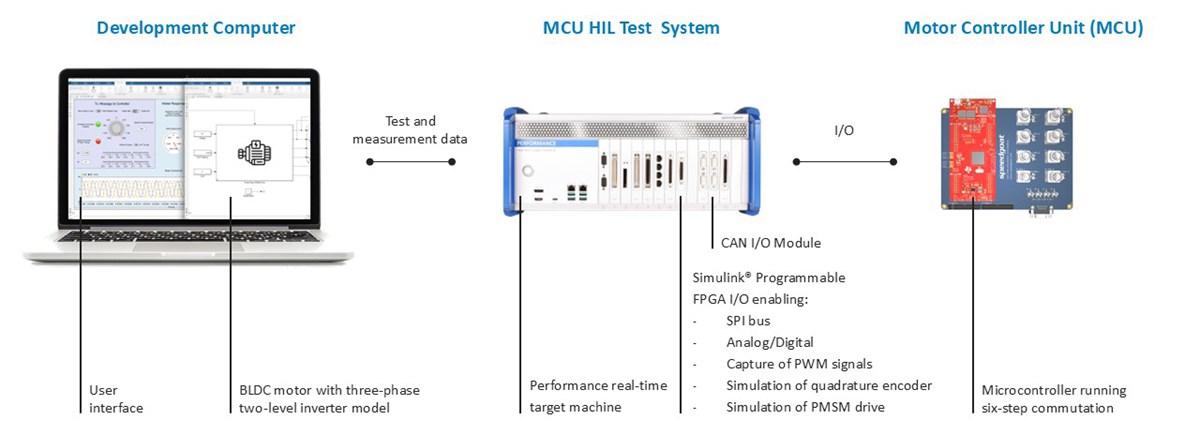

Set up a hardware-in-the-loop (HIL) test system for testing six-step commutation running on the embedded controller.
Perform interactive motor controller testing with Simulink
®
and MATLAB
®
.
Accelerate motor controller development with automated and continuous HIL testing.
Product Highlights
Speedgoat Products
Performance Real-Time Target Machine
IO334 Simulink
®
-Programmable FPGA I/O Module
IO3XX-21: I/O Interface Extension with 56 TTL lines
HDL Coder™ Integration Packages
Motion Control HDL I/O Blockset
CAN and SAE J1939
(Optional)
Launchpad Development Kit
MathWorks® Products
Simulink
®
Real-Time™
Motor Control Blockset™
C2000™ Microcontroller Blockset
Simulink
®
Test™
(Optional)
Related Content
Watch Webinar
More
Watch Webinar
More
Watch Webinar
More
Electric Motor Control Reference Example
More
