IO204: Digital I/O Module

Parallel digital I/O module with 16 channels of 12V or 24V inputs and 16 channels of 6 to 48V outputs

This I/O module is a dedicated digital I/O module providing 16 channels of 12V or 24V inputs and 16 channels of 6 to 48V outputs. All channels are galvanically isolated by opto-couplers, and have a common freely programmable debounce time. All outputs are protected against short-circuit and thermal overload and can output up to 0.5A per channel.

It is available with either 24V or 12V inputs, and either high or low-side switching on the outputs.

Digital Inputs

  • 16 x 24V channels (IO204)
    16 x 12V channels (IO204-12V)
  • Galvanically isolated (optical)
  • Programmable debounce circuit (7us to 440ms in steps of 7us)

Digital Outputs

  • 16 channels, 6 to 48V (from an external source)
  • Maximum output current 0.5A continuous per channel (at 24V)
  • Galvanically isolated (optical)
  • High-side or low-side switches (order options)

The IO204 is available with either 16 galvanically isolated high-side (default) or low-side switch outputs resulting in the wiring below:

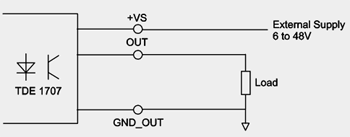

Output wiring high-side switch

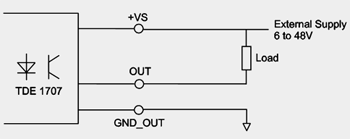

Output wiring low-side switch

Physical
Form factor PMC
PCI bus 32-bit, 33MHz
Power requirements 0.3W with all inputs and outputs inactive
0.7W with all inputs and outputs active
Connector 68-way SCSI3
Cable connectors: Tyco Electronics
Board connector: Tyco Electronics part no. 5749069-7
Environmental
Operating temperature -25 to +85°C
Humidity 5 to 95% non-condensing
Digital inputs
Configuration 16 channels
Isolation Optocouplers for galvanic isolation
Max input voltage 24 VDC +-20%
Input low voltage < 7.5 V DC (IO204)
< 5 V DC (IO204-12V)
Input high voltage > 14 V DC (IO204)
> 10 V DC (IO204-12V)
Current 4.2 mA typical at 24 V (IO204)
1.3 mA typical at 12 V (IO204-12V)
Signal debouncing Programmable debounce time, common for all channels
Value from 7us to 440ms in 7us steps. Can be disabled
Digital outputs
Configuration 16 channels, high-side or low-side switches (order options)
Isolation Optocouplers for galvanic isolation
External voltage 24V DC typical, 6V DC minimum, 48V DC maximum
Current 0.5A typical (0.3A for voltages over 32V)
Short circuit current 0.8A typical
Voltage drop 1.1V typical at 0.5A
Output protection Overload, short circuit, GND and Vs open wire protection, thermal shutdown
Reliability
Mean time between failures (MTBF)* 252,000 hours
MTBF (Mean Time Between Failure) - MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2; Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2A204X IO204 (high-side)
  • 1 x IO204 (high side) with 24V inputs
  • 1 x shielded round 68-way SCSI-III cable, 1.63m (6ft) long
  • 1 x 68-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2B204X IO204 (low-side)
  • 1 x IO204 (low side) with 24V inputs
  • 1 x shielded round 68-way SCSI-III cable, 1.63m (6ft) long
  • 1 x 68-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2C204X IO204-12V (high-side)
  • 1 x IO204-12V (high side) with 12V inputs
  • 1 x shielded round 68-way SCSI-III cable, 1.63m (6ft) long
  • 1 x 68-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine
2D204X IO204-12V (low-side)
  • 1 x IO204-12V (low side) with 12V inputs
  • 1 x shielded round 68-way SCSI-III cable, 1.63m (6ft) long
  • 1 x 68-way spring-loaded terminal board with DIN-rail mount
  • Driver block library for Simulink Real-Time™
  • Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.



Included in delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
