IO130: Simultaneous sampling 16-bit analog I/O module

IO130: Simultaneous Sampling 16-bit Analog I/O Module

Fast, simultaneous-sampling 16-bit isolated analog input and output module with Simulink^® driver blocks

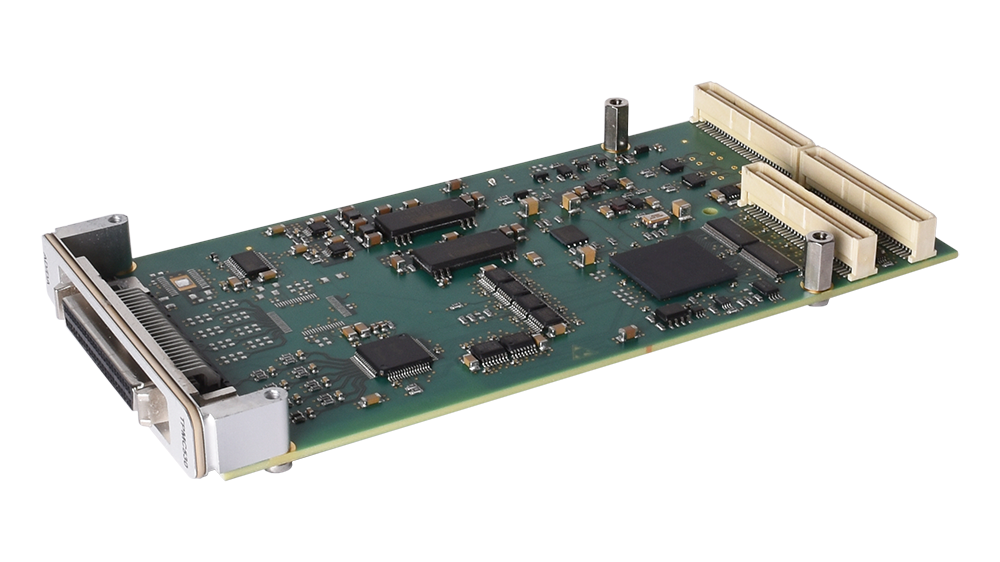

The IO130 I/O module is a fast, simultaneous-sampling, 16-bit analog input and output module with Simulink^® driver blocks.

The analog input channels can be sampled simultaneously with a constant conversion time, and the analog output channels can be updated individually or simultaneously.

The analog inputs offer software selectable ±5 V and ±10 V bipolar input voltage ranges and the sampling rate is up to 200 kSPS.

The analog outputs offer software selectable 0-5 V, 0-10 V, ±5 V and ±10 V output voltage ranges. The conversion time is typically 10 μs, resulting in a maximum update rate of 100 kSPS.

This I/O module can also be interconnected with other I/O modules to synchronously sample and convert isolated analog input or output channels across the different modules and target machines.

This I/O module is ideal for closed-loop controls and hardware-in-the-loop (HIL) simulations using MATLAB^® and Simulink^®.

Analog Inputs

Up to 8 channels, simultaneous sampling, true bipolar differential voltage inputs
16-bit resolution
Up to 200 kSPS
Software selectable ±5 V, ±10 V input range (one setting for all channels)
Overvoltage protection up to ±16.5 V
Simulink^® Real-Time™ analog input driver blocks

Analog Outputs

Up to 4 single-ended, simultaneous update, unipolar/bipolar outputs
16-bit resolution
10 µs settling time
Software selectable ±5 V, ±10 V, 0-5 V, 0-10 V output range (one setting for all channels)
20 mA current limit
Simulink^® Real-Time™ analog output driver blocks

Physical
Form factor	PMC
Power requirements	330 mA typical @ +5V DC
Electrical interface	32 bit/33 MHz, Revision 3 of PMC specification, P1386.1
Connector	50-pin male SCSI2 Cable connectors: Tyco Electronics Board connector: Tyco Electronics part no. 5749069-5
Environmental
Operating temperature	-40 °C to +85 °C
Relative humidity	5 to 95 %, non-condensing
Analog Input
Number of inputs	8 true bipolar differential
A/D resolution	16 bit
Maximum ADC sample rate	200 kSPS with DMA
Voltage ranges	Software selectable ±5 V, ±10 V, (one setting for all channels)
Input over voltage protection	Up to ±16.5 V, 7k V ESD rating
Input Impedance	1 MΩ
Analog Output
Number of outputs	4 single ended
D/A resolution	16 bit
Settling time	10 µs
Voltage ranges	Software selectable ±5 V, ±10 V, +5 V, +10 V (one setting for all channels)
Output load	Max 2 kΩ \| 4000 pF per channel
Protection	20 mA current limit
Reliability
Mean time between failures (MTBF)^*	544,000 hours

*MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.

Item ID	Product Name	Components
2A130X	IO130	1 x IO130 I/O module 1 x 50-pin male SCSI2 to 50-pin male MDR cable, (6 ft/1.82 m) 1 x 50-pin female MDR terminal board Driver block library for Simulink^® Real-Time™ Comprehensive documentation and Simulink^® example models Installation into the real-time target machine
Optional Accessories
2A130M	IO130-BNC-Panel	2U aluminum BNC panel for the IO130 I/O module providing a total of 16 BNC connectors to access 8 differential analog inputs, and 8 BNC connectors to access 8 single-ended analog outputs.

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

5 = Mobile real-time target machine
6 = Performance real-time target machine
8 = Baseline real-time target machine
